Major-Tech Digital Insulation Tester 250/500/1000V K3007

Features:

Three test ranges 250V-500V-1000V
Auto null function
Trac-Lok mode to extend battery life by up to 400%
Automatic discharge after test
Main bargraph indication of insulation resistance, sub bargraph indicates output voltage
Displays the value of external AC voltage along with flashing symbol and buzzer
Lock down Test Button for continuous use
1mA output current on insulation test
200mA short circuit on continuity range
EL Backlight for dimly lit areas
K3007IS Intrinsically safe version available

The K3007 is a 1000V Digital Insulation Tester equipped with Trac Lok Circuits that improve battery life considerably, thus saving the user money. The K3007 has three test voltage ranges: 250V, 500V and 1000V and is equipped with a unique bargraph display that illustrates to the user that the insulation under test meets the minimum voltage required by the regulations. An advanced feature included in this model is Auto Null mode, this unique function subtracts the test lead resistance during continuity tests, ensuring repeatable accuracy. Another great feature is the EL Backlight on the display which enables readings to be taken in dimly lit areas. The K3007IS is available on request.:

Accessories:
Pouch for leads
AA batteries

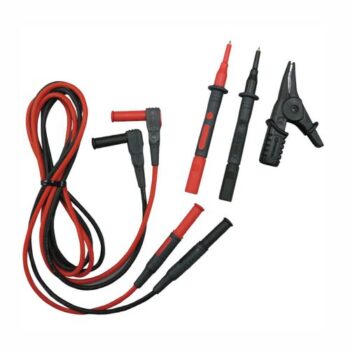

Test leads
Instruction Manual
Strap
COC
