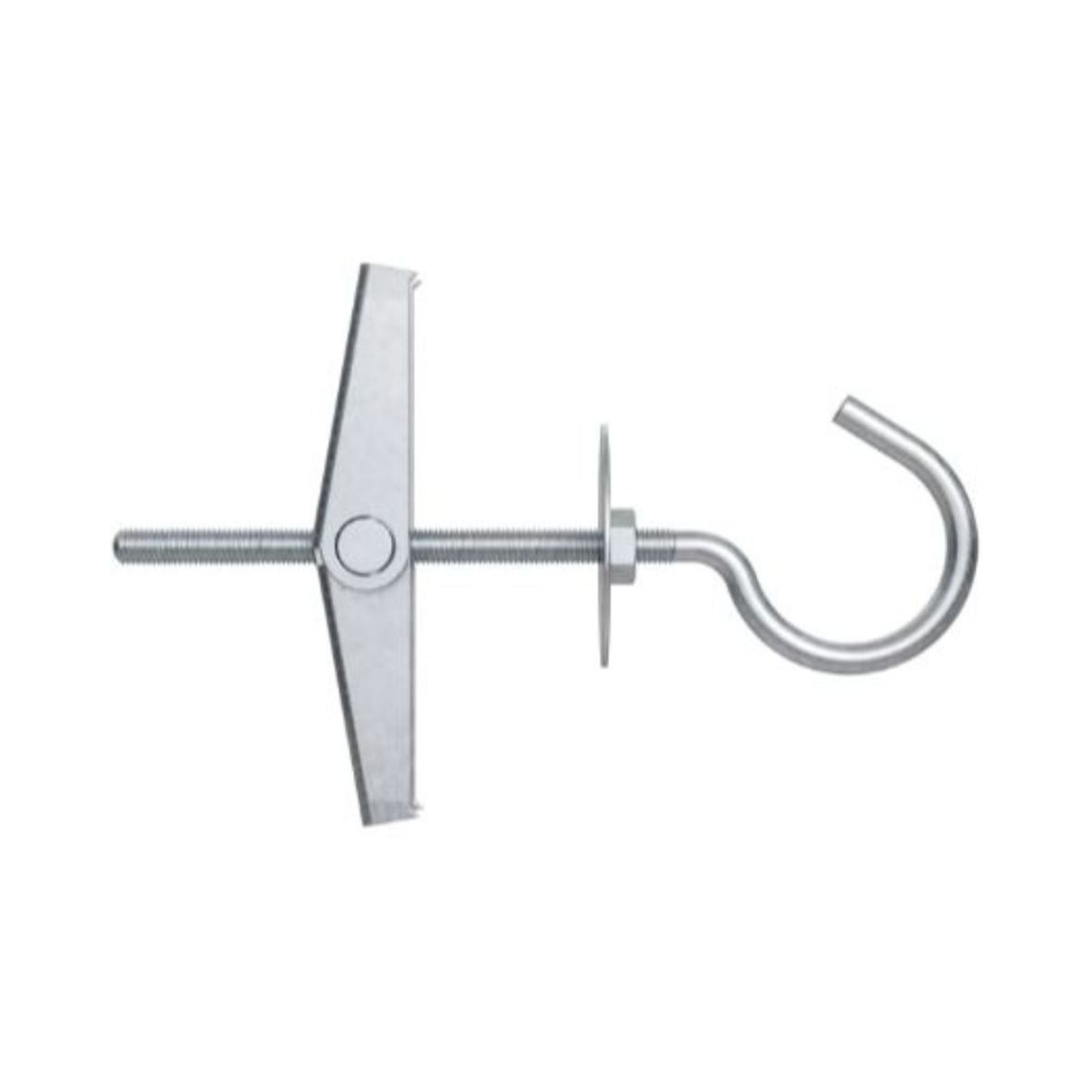

Fischer Spring Toggle Hook (Various Sizes)

Product – KDH 3
Drill diameter: 12mm
Max panel thickness: 51mm
Min. Cavity depth: 27mm

Product – KDH 4
Drill diameter: 14mm
Max panel thickness: 25mm
Min. Cavity depth: 34mm

Product – KDH 6
Drill diameter: 16mm
Max panel thickness: 60mm
Min. Cavity depth: 70mm

Top Features
High load capacity due to good load distribution on the transition beams.
Simple assembly due to self-opening tension spring.
High flexibility due to a long thread. Use with various panel thicknesses and attachment thicknesses.
With hook.
Suitable for pre-positioned installation.

The cavity fixing with hook for different board thicknesses.
Advantages
Universal fixing for fastenings in a wide range of drywall and hollow wall materials.
When the metal crosspiece is pushed.through the drill hole, pull it firmly against the inner wall cavity by tugging the plastic pull ring on the outer wall.
Afterwards cut the plastic legs off and fasten the fixture with e.g. a screw or screw in a hook or an eyebolt according to your demands.
Suitable for pre-positioned installation.
