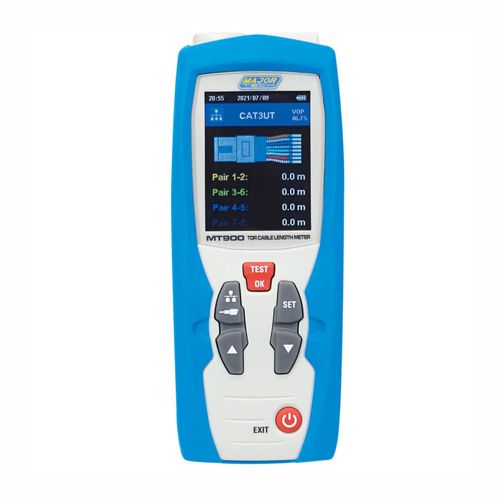

Major Tech Cable Lenght Meter Tester TDR MT900

Features :

Measures copper cable up to 3.0km
20 Standard Cables Library
99 Internal memory locations store up to 99 traces for future analysis
Measures V.O.P (Velocity Of Propagation) of a sample cables
Automatic output impedance and range control
Auto-Zero / Auto range
2.4 inch TFT Colour Screen
High accuracy and fast reflection
Auto-Sensitivity allows for closer matching to a wide range of cable under test, only V.O.P. settings required

The MT900 is a TDR Cable Length Meter that uses TDR (Time domain reflectometer) technology to measure cable length. The meter can be used for any cable consisting of at least two insulated metallic elements, one of which may be the sheath or shield of the cable. It has an automatic internal matching network to allow testing with an automatic selection range, which correspond to power, telephone, CAT 5 and Coax cables. The meter can be closely matched to the cable under test using the function selection keys. The Velocity of propagation (V.O.P.) value can be similar adjusted to match the cable under test, thus ensuring an accurate distance measurement.

The MT900 meter has a cable library for quick and easy access to 20 standard cable types, which enables accurate measurement without necessity of entering V.O.P. (Velocity of Propagation). This cable meter can also store up to 99 internal memory locations which can be used for future analysis. The V.O.P. can be calculated for the cable under test and added to this library.

Accessories:

Carrying Case
2 x AA Battery
BNC Test leads
BNC Cable
2 x Crocodile Clamps
BNC Lead
Instruction manuals
