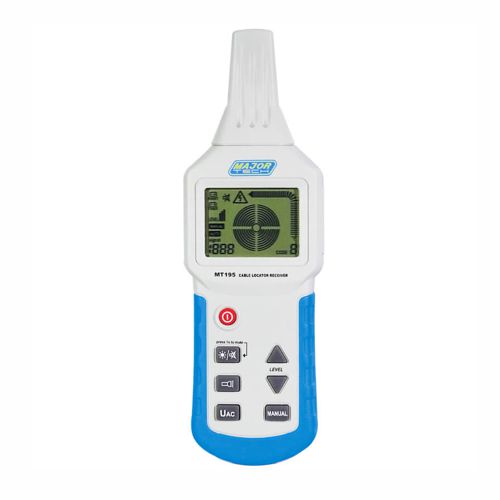

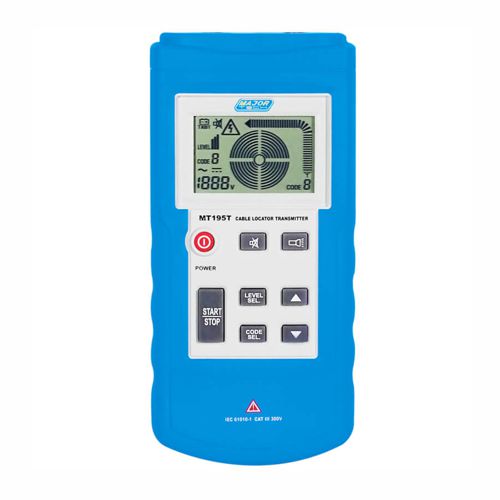

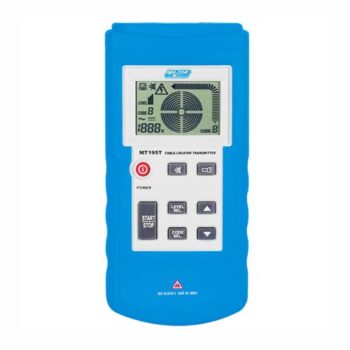

Major-Tech Cable Locator MT195

Features :

Detects cables, electrical wire, water/gas supply pipelines concealed in walls and ground
Detects interruptions and short circuits in cables and concealed electrical wire
Tracing sockets and distribution sockets having accidentally been covered by plastering
The transmitter measures voltage from 12V to 400V AC/DC
The screen of transmitter displays preset transmitting power, transmitted codes and voltage
Transmitter has self-inspection displaying status on LCD
Both transmitter and receiver have flashlight function
Output signal 125kHz
Detects interruptions and short circuits in floor heating
The LCD of receiver displays preset transmitting power, transmitted codes and voltage
The sensitivity of the receiver can be adjusted manually or automatically
The receiver can sweep frequency automatically
Identifies fuses and assigned current circuits
Mute mode can be set for both the transmitter and receiver
Auto Power Off
Additional transmitters are available to extend or verify several functions

The MT195 Cable Locator is the ideal tool to detect electrical power cables, communication cables, metal pipes and much more during construction, maintenance, or renovation. Pinpoint pipes and cables in walls or underground with precision by identifying the corresponding signal number sent by the transmitter. The transmitter and receiver with their advanced digital circuit technologies ensures a highly stable and reliable performance. The transmitter not only sends signals but can be used as an AC/DC voltmeter displaying the voltage on the tested line. When testing on electrical circuits, the receiver can quickly identity circuit breakers in the distribution board of the circuit the transmitter is connected to or visa versa. The receiver displays the value of the signal measured and it can be used to check short circuits or breaks on existing installations, ideal for underfloor heating systems. The MT195 set is lightweight and is supplied with a complete set of accessories for direct measurement.

Accessories

Carrying Case & Shoulder Strap
Test Leads
Test Probe
Croc Clips
Grounding Rod
Batteries
Instruction Manual
