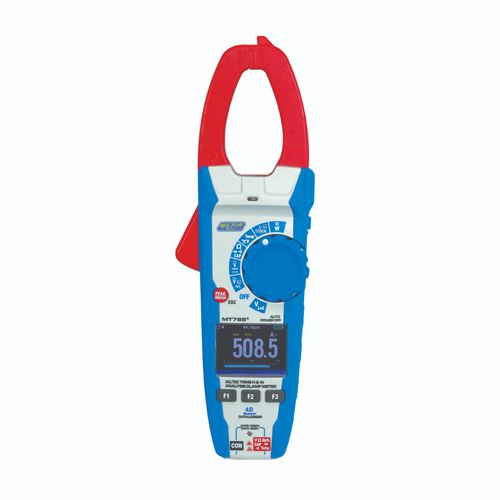

Major-Tech Clamp Meter Trms H & W Analysis MT785

Features :

6000 count TFT colour LCD display
Ø33mm Cable Clamp size
Measurement of AC and DC current up to 1000V
TRMS AC voltage to 1000V, DC voltage up to 1500V and AC+DC voltage measurements
Active, Reactive, Apparent Power & Power Factor on single phase
AC and DC Power measurements
Energy measurements on single phase – Active, Reactive and Apparent
Capacitance to 6000µF
Trend Capture Function
INRUSH Current Measurements
AC Voltage and Current Harmonics (1 – 25) and THD% up to 75Hz (1 – 8 above 75Hz)
LoZ – Low impedance mode prevents false readings due to “Ghost” voltage
NCV – Non-Contact Voltage Detector
Built-In Flashlight
Continuity buzzer and Diode Test
Peak Mode, Min/Max and Data Hold function
Auto Power Off

The MT785 is a 1500A DC Bluetooth H & W Analysis Clamp Meter that measures up to 1000A AC/DC with an analogue bargraph indication on a TFT colour display. The MT785 simultaneously measures and displays Active, Reactive and Apparent Power and Energy, and current harmonic analysis up to the 25th order with THD% calculation in a single phase. The 100ms Inrush current detects starting up currents of electric motors, input surge current, or switch-on surge currents, this is the maximum instantaneous input current drawn by an electrical device when first turned on. The meter has been designed to measures 1500V DC purposely for the Solar industry, 1000V AC, temperature, frequency, capacitance and resistance, plus the Low Z range function has a low pass filter to eliminate errors caused by “Ghost” voltages. The meter has a built in record and store function and displays trend charts, using the Bluetooth function the meter wirelessly transmits data to the Android or iOS mobile App allowing the user to view, save, organize and share recordings

Accessories:
Carrying Case
9V Battery
Test Leads
Instruction Manual
