Major-Tech Digial Loop Impedance and PSC Tester MT350

Features :

Custom microprocessor controlled for highest accuracy and reliability
Loop impedance of 2000O range measurement is carried out with low test current (15mA)
Automatic Lock-Out if Test Resistor Overheats
Direct readout of Prospective Short Circuit Current and Earth Fault Current
Measures low loop impedance of 0.01O
3 LED’s for checking correct wiring status
Safe voltage measurement function
Visual indication of reversed phase and neutral at wiring socket
Double injection rubber housing

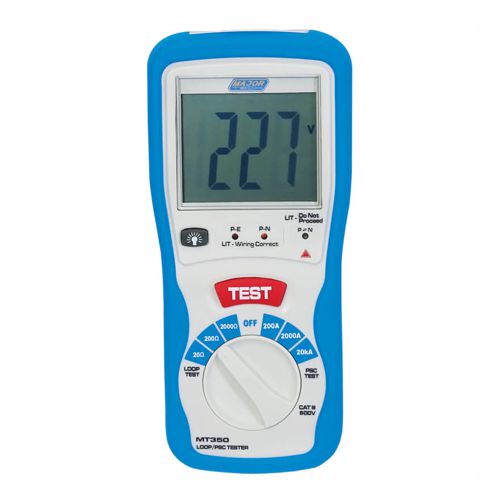

The MT350 is a handheld Loop Impedance and PSC Tester that is microprocessor controlled, which includes 3 loop impedance measuring ranges capable of measurements from any point in the installation for comprehensive testing of distribution systems. The MT350 gives a direct readout of PSC and earth fault current to a maximum of 20kA in 3 measuring ranges. Other features include 3 LED’s for checking the correct wiring status of the circuit under test and the automatic lockout if the resistors overheat. The meter is supplied in double injection rubber housing.

Accessories:

Carrying Case
Distribution Board Test Leads
Magnetic Strip
Croc Clips
Plug Cord with IEC Connectors
6 x AA Batteries
Instruction Manual
