Major -Tech Digital Insulation Tester MT560

Features :

Four test ranges 125V-250V-500V-1000V
MIN/MAX Record mode
Measures AC Voltage to 750V and DV Voltage to 1000V
Large Dual LCD display with bargraph
Live Circuit detection prevents insulation tests if voltage >30V
Auto Null of test lead resistance
1mA output current on insulation test
200mA short circuit on continuity range
Continuity Buzzer
Automatic discharge of capacitive voltage after test for added protection
Data Hold function
Lock down Test Button for continuous use
Hands free strap and magnet supplied as standard accessories
Rubber overmould housing
Illuminated display

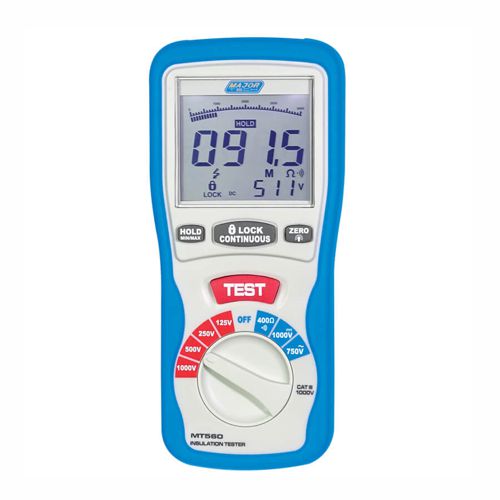

The MT560 is a 1000V Digital Insulation Tester and has a large dual display with a bargraph indicating the insulation resistance. This compact handheld meter has four test ranges: 125V, 250V, 500V and 1000V source for the test and under each range it can supply more than 1mA current to feed the capacitance load. The tester features AC and DC voltage ranges as well as a battery indication. Should AC voltage be present, the LCD display will indicate to the operator the AC voltage value, regardless of what range the meter is on except in the Off position. Other features include a data hold function, a bright white LED back light and a continuity buzzer.

Accessories:
Carrying Case
6 x AA Batteries
HDT1282 Test leads
Instruction manual
MTMAG Magnetic strip
Adjustable shoulder Strap
Line Probe with Alligator clip
