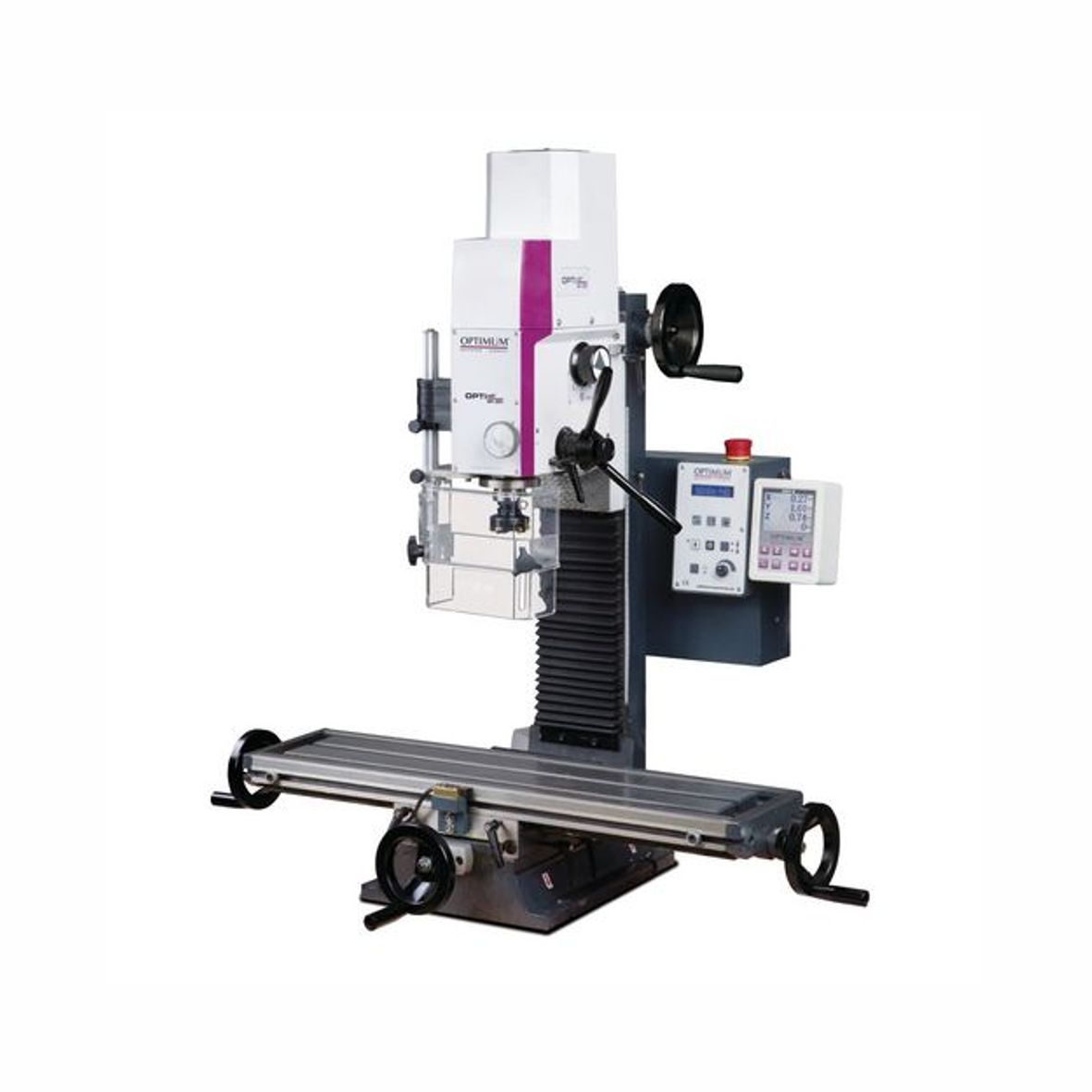

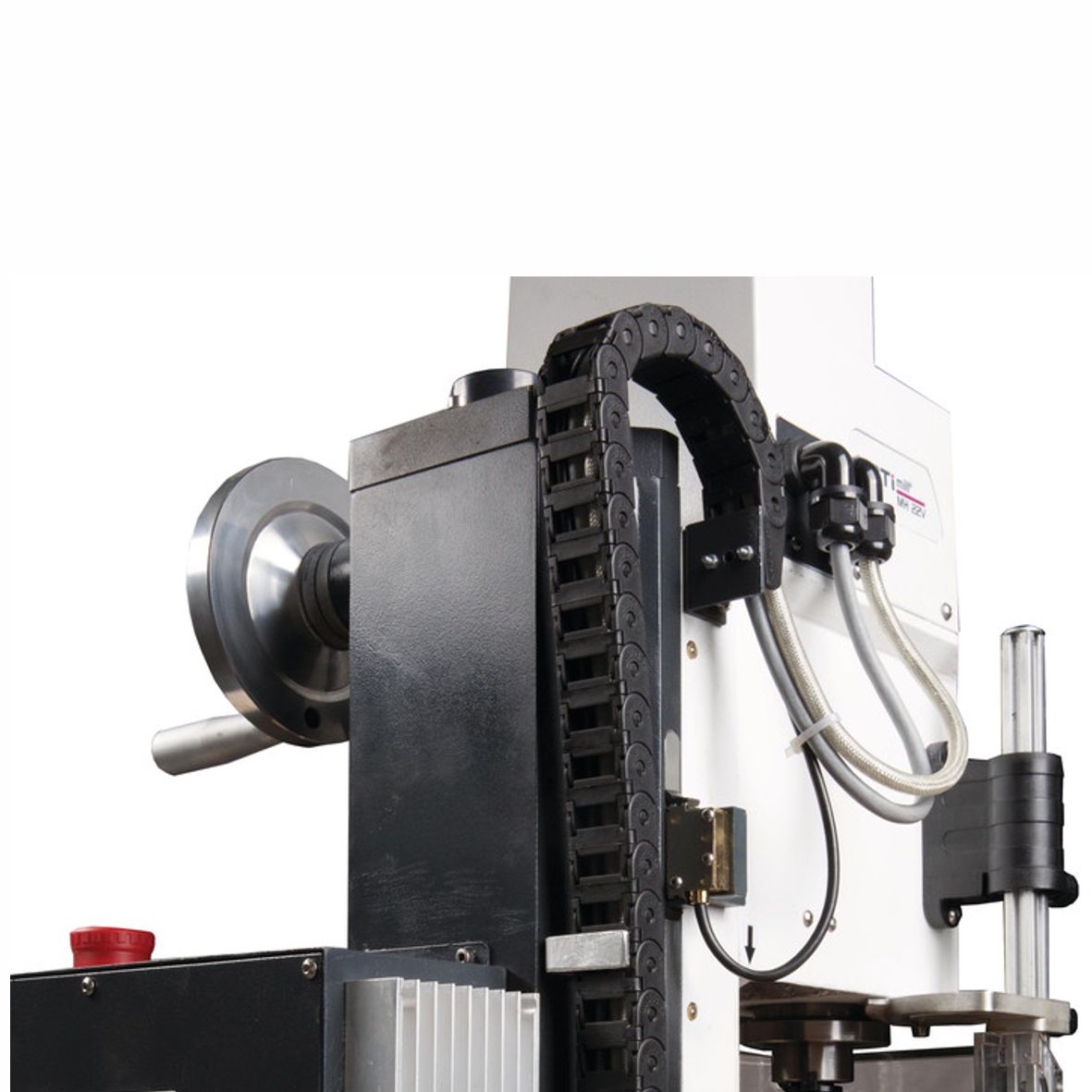

Optimum Milling Machine MH22VD 230v Stand + Chip Tray

Precisely processed
Clear control panel with user-friendly membrane keypad
Safety electrics in 24 volt version
Easy-to-read digital display for speed and drilling depth
Emergency stop switch
Motor with two-stage gear ratio for powerful transmission of engine power
Powerful DC motor with permanent power monitoring
Control electronics with integrated relay control
Drilling milling head can be tilted by ±60°, for milling and drilling work at any angle
Feed spindles play-free adjustable by adjustable spindle nuts
Right/Left Run
Machine lamp
High concentricity measured by tapered roller bearings of = 0.015 mm in the pinole
Stable swallowtail guide with adjustable wedge strips
Massive precise surface-worked cross table with T-slots
Adjustable end stops
Drilling for light oiling of the trapezoidal spindle
Two-row angular ball bearings in the axes, play-free adjustable
Height-adjustable protective screen with microswitch, against flying chips and parts, for maximum protection of the user
Fine feed
X-, Y- and Z-axis with prepared groove for subsequent assembly of the magnetic tapes
Bellows as guide protection
Mechanical quick-release clamping system
With digital position indicator DRO 5

Drilling/milling head
Mill head swivel range ± 60 °

Drilling/milling output
Max. size milling head 52 mm
Max. size shaft milling cutter 12 mm
Drilling performance steel (S235JR) 20 mm
Continuous drilling performance steel (S235JR) 16 mm

Electrical Data
Drive motor output 0.95 kW
Supply voltage 230 V
Mains frequency 50 Hz

Milling table horizontal
Table length 700 mm
Table width 180 mm
T-groove size 12 mm
T-groove number 3
T-groove spacing 63 mm
Max. load bearing capacity 50 kg

Standards and certifications
Standard DIN EN 55011
EMC level C2

Travel
X axis manual 480 mm
Y axis manual 175 mm
Z axis manual 270 mm

Vertical spindle
Reach 170 mm
Spindle chuck BT 20
Speed range 90 – 3000 min¯¹
Number of gears 2
Speed control electronic
Quill diameter 60 mm
Quill stroke 45 mm
VPE 1
